Let Improve-Your-Injection-Molding mold design services take your business to the next level – its the easy way to get what you want.
Specializing in:
- 4 and 6 cavity straight face mould design for Thin Wall parts
- 2+2 and 4+4 stack mould design for Thin Wall parts
Video Example 1
Scroll down to see Stack Molds
Thin wall 500ml Food Container 4 cavity hot runner mold tool.

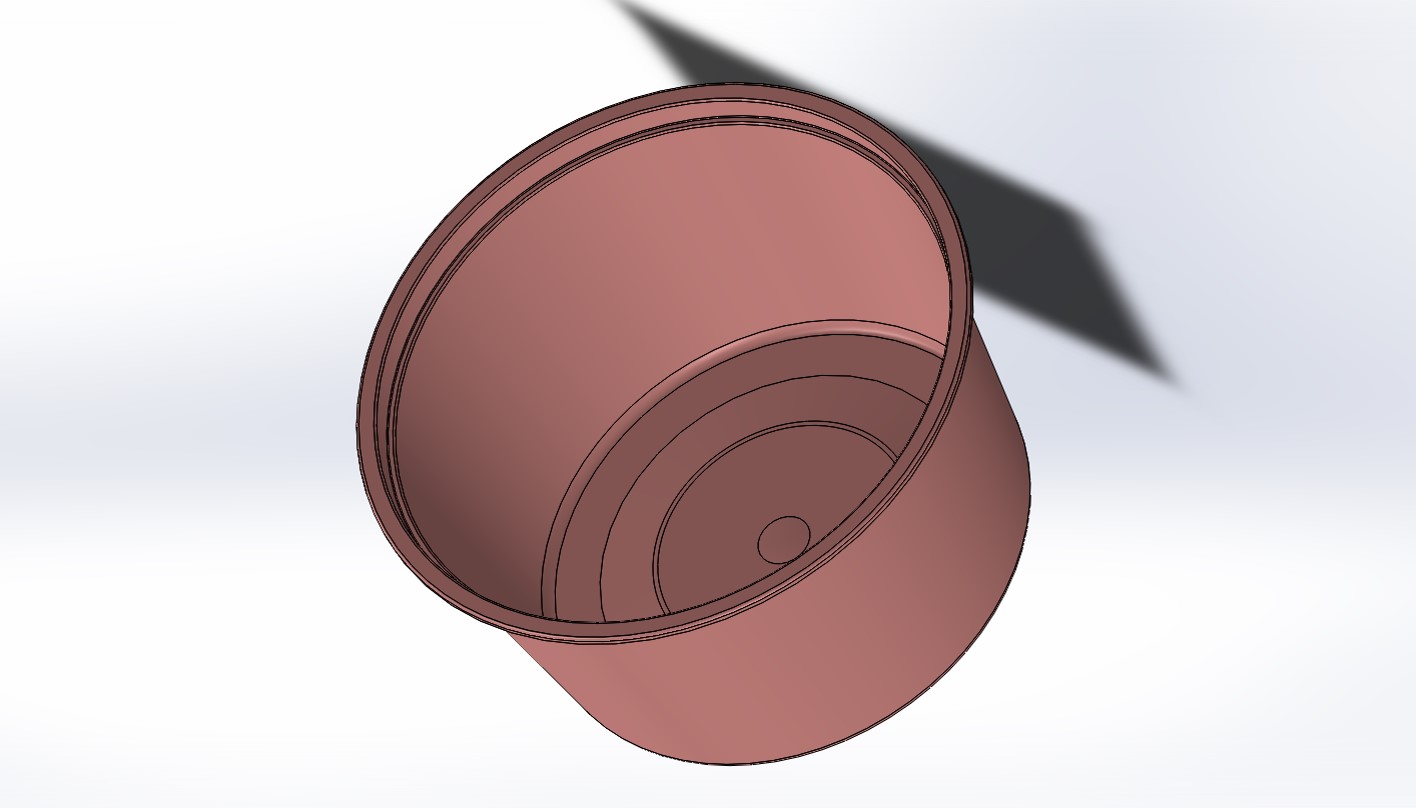

Food container details: (see Figure 1)
Weight: 13.0 grams
Wall thickness: 0.45mm (0.0177 inch)
Material: PP homo polymer
Cycle time: 4.0 seconds (free drop)
Ejection type: 4 individual stripper plates
Annual number of cycles capability: 7 million
Annual production capability: 28 million (4 cavities)
This mold was designed by Improve Your Injection Molding & built to the Society of Plastics Industry (SPI) Class 101 mold classification.
Figure 1Example 2.
Thin wall Disposable Rectangular 750ml Tub 2+2 Stackmold
Part weight: 22.5 grams
Wall thickness: 0.55mm (0.022 inch)
Material: PP homopolymer
Cycle time: 6.6 seconds (robot takeout)
Hot tip hot runner
Annual production capability: 17.5 million (4 cavities)
Machine clamp requirement: 300T
Example 3.
Thin wall Disposable Rectangular Lid 2+2 Stackmold
Part weight: 12.4 grams
Wall thickness: 0.51mm (0.02 inch)
Material: PP homopolymer
Cycle time: 3.7 seconds (free drop)
Hot tip hot runner
Annual production capability: 30 million (4 cavities)
Machine clamp requirement: 250T
Example 4.
Thin wall Disposable Rectangular Lid 4+4 Stackmold
Part weight: 12.4 grams
Wall thickness: 0.51mm (0.02 inch)
Material: PP homopolymer
Cycle time: 5.0 seconds (robot takeout)
Hot tip hot runner
Annual production capability: 45 million (8 cavities)
Machine clamp requirement: 500T
Mold Design For Packaging Products Including Thin Wall
Thin wall products – Food containers, cups, plates, buckets & lids.
Polycarbonate Drinkware
Caps & Closures
Cutlery – fork, spoon & Knife
Storage Containers 5, 9, 12, 18, 20, 30, 40 litre
2 Shot Mold Design
Mold design outsourcing is becoming more common as the skills gap widens in the plastic injection molding industry.
If you are like many injection moulding & tool making companies you may be searching for the perfect blend of price, delivery time, quality and support.
If you are becoming frustrated in your search for the ideal mould design service then we might have the answer for you.
Get It Right The First Time
If we had found precision mold design services specializing in high volume products back when we did mold making for thin wall packaging, we believe it would have saved us 5 years of frustrations.
We are not exaggerating. It takes a lot of trial and error to work this stuff out and we suggest, if at all possible, you take the shortcut past that stuff and start doing what works.
To be able to injection mold tens of millions of quality parts consistently and at a profit not only requires knowledge of mold design but also knowledge in the other key areas of part design, machine selection & of course processing.
We can advise you in all of these areas.
If you are ready to take your business to the next level & get the mould designs that will help you achieve the results you want from your business then we invite you to scroll down to the contact form.
Mold Design Services for Molders & Toolmakers
This service is perfect for those injection molders who currently make their own molds & plan to light weight their products by manufacturing injection molds for thin wall packaging products and need help with mold design & machine selection.
This service is also ideal for toolmakers (mold builders) who plan on building moulds for thin wall packaging products (with or without IML) or just need extra design capacity.
Existing Quality Issue
If you have an existing quality issue such as wall thickness variation & want to avoid this issue on your next mold design then we can help you!
Risk Free Approach
What do we mean by risk free?
If you get stuck during mold building, mold trialling or even during a production run, we will keep providing the necessary advice required for you to achieve the expected part quality and productivity levels at no extra charge.
Privacy Policy
We know how important confidentiality is to our customers so your information is safe with us.
Example 5
Working Together as a Team
In order to get a design that will be compatible with your business it is critical that we get your input into the mould design.
Such things as expected annual quantity requirement, In-Mold Labeling requirement (IML), mold ejection method & water fitting size need to be discussed before mould design begins.
Example of mold assemblyExample 6.
WuLiangYe Chinese Liquor 3 Piece Cap
16 cavity collapsing core mold
Part weight: 4.8 grams
Material: K-Resin
Cycle time: 13.7 seconds
Hot tip hot runner
Annual production capability: 33 million
Machine clamp requirement : 150T
